DESCRIPTION
Top Speed : 20 mph/ 32 km/h
Range : 20-30 Miles / 32-48 Km
Model : 2010
Frame Type : Ladies Cantilever
Color : Red
SKU : IZ-ZUMA-RD-W
Flat Shipping Rate Included in Price!
We Believe You Should Cruise with Power (lots of it) and in Style!

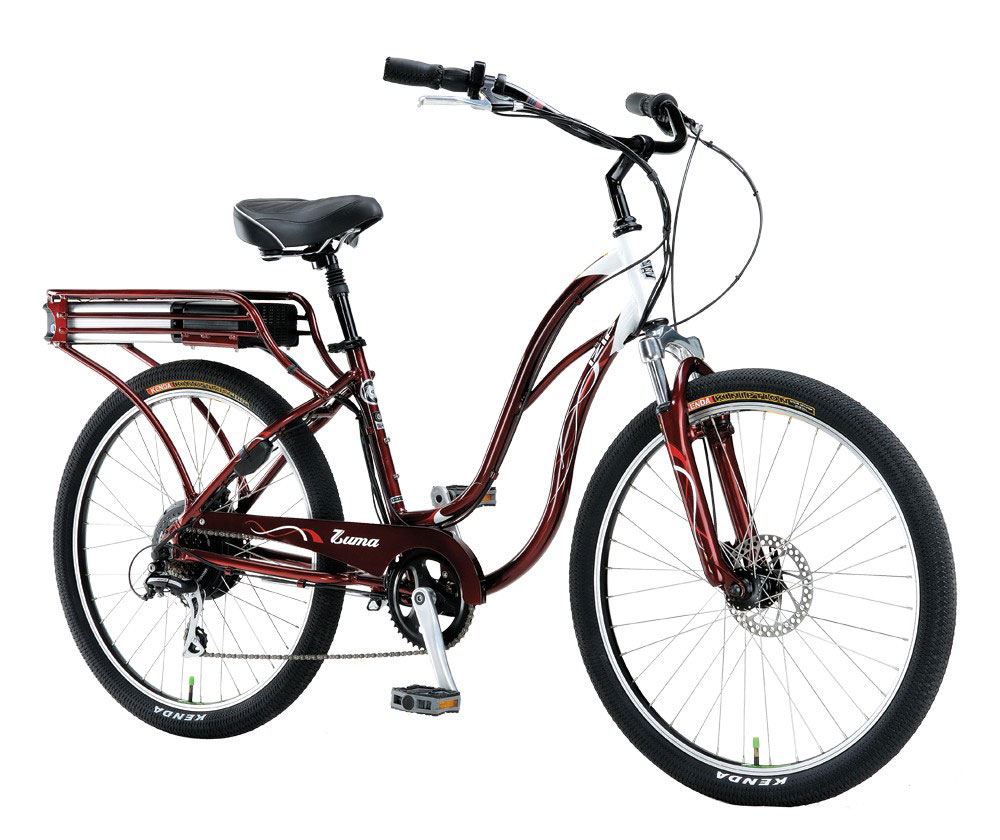

500 Watts of “Power on Demand” in a retro styled package. And top quality components from head to toe. That's the all new IZIP Zuma Cruisers. Old-school simplicity paired up with modern eBike technology and design for relaxed, good times and an uber-comfortable, laid-back ride.
The Zuma is a modern interpretation of the tried and true formula of everything that makes riding a cruiser great, including simplicity: Featuring our powerful, state-of-the-art, 36 Volt/500 Watt Currie Electro-Drive® hub motor, paired with our proprietary PAS/TAG system that puts you in complete control at all times. Designed to give you options of either simple throttle power or pedal assist power that allows you to amplify your human power if you choose. Powered by a large capacity Samsung 36V 11.4Ah Lithium-ion battery pack that easily removes from an integrated carrier platform to allow charging both on and off the bike.
A blast to ride and super comfortable - equipped with quality suspension fork and seat post, a plush Velo suspension comfort saddle and leather grips, stable Kenda Kiniption balloon tires with Slime® puncture resistant inner tubes and sure-stopping disc brakes both front and rear.
The Zuma is just plain (zoom-zoom) F-U-N!
SPECIFICATIONS
| MOTOR |
Exclusive Alloy Shell 500W DC Brushless Geared Hub Motor |
| BATTERY |
Samsung 36V/11.4Ah EV Rated Li-ion, Rear Rack Mounted, Rechargeable |
| CHARGE SYSTEM |
UL Listed Currie Smart Charger with LED Status Display |
| CONTROLLER |
Exclusive Currie Electro-Drive, 36 Volt Fully Potted with Power Gauge Function |
| TOP SPEED |
Up to 20 mph/ 32 km/h (Rider Weight, Rider Input and Terrain Contingent) |
| RANGE |
Up to 16- 22 Miles / 25 - 35 km with Normal Pedaling (Rider Weight, Rider Input and Terrain Contingent). |
| DRIVE |
Exclusive Currie Electro-Drive Geared Hub Motor, Shimano TZ50 Rear Derailleur, SRAM Grip Shift, 7-Speed Drivetrain |
| BRAKES |

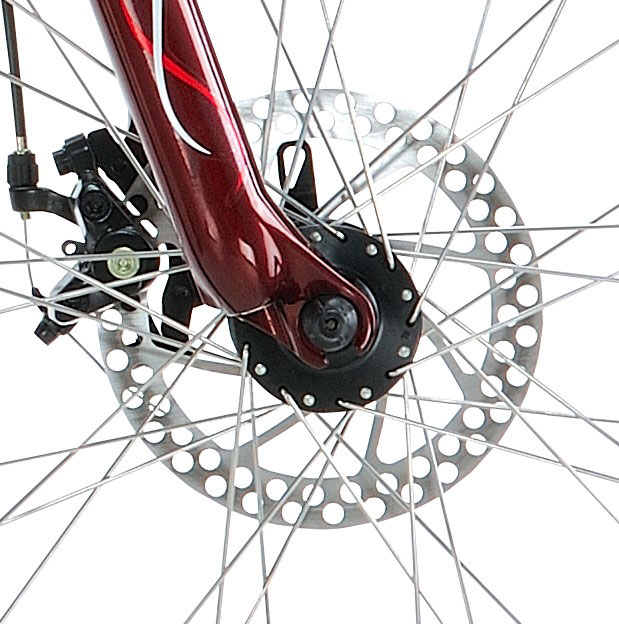

Disc type with Alloy Brake Inhibit Levers |
| WHEELS |
Alloy 26" Rims with Stainless Steel Spokes |
| TIRES |
Kenda Kiniption 26" x 2.00", Slime Self-Sealing Flat Tire Prevention System |
| HANDLEBAR / STEM |
High-Rise Bar and Height Adjustable Stem, Dual Density Grips |
| FORKS |
Suspension w/Alloy Crown and Legs |
| USER CONTROLS |
Power ON/OFF and function PAS/TAG Conveniently Mounted on the Handlebar, Easy Access Charger Port in Removable Battery Pack, Twist Throttle & Battery Gauge |
| SADDLE |

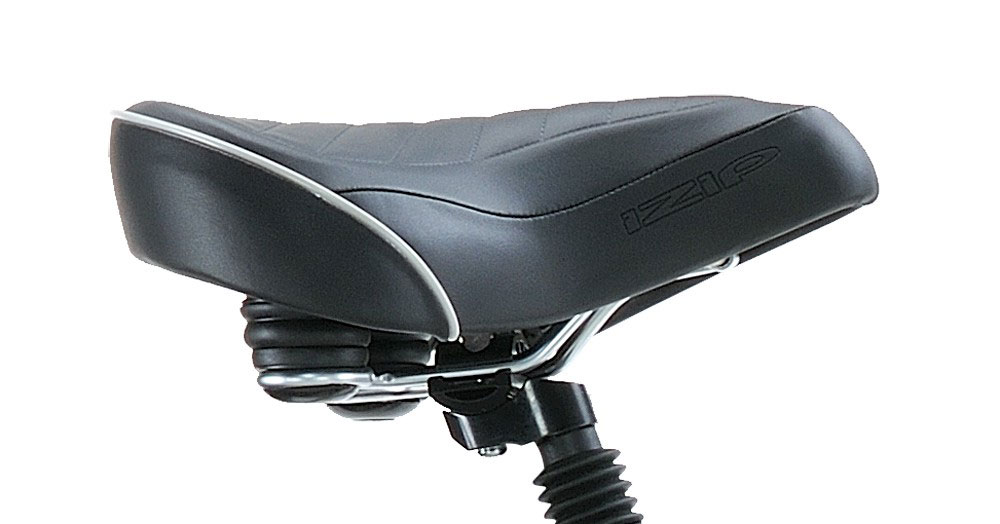

Velo Suspension Comfort and Micro-Adjust Suspension Post |
| FRAME |

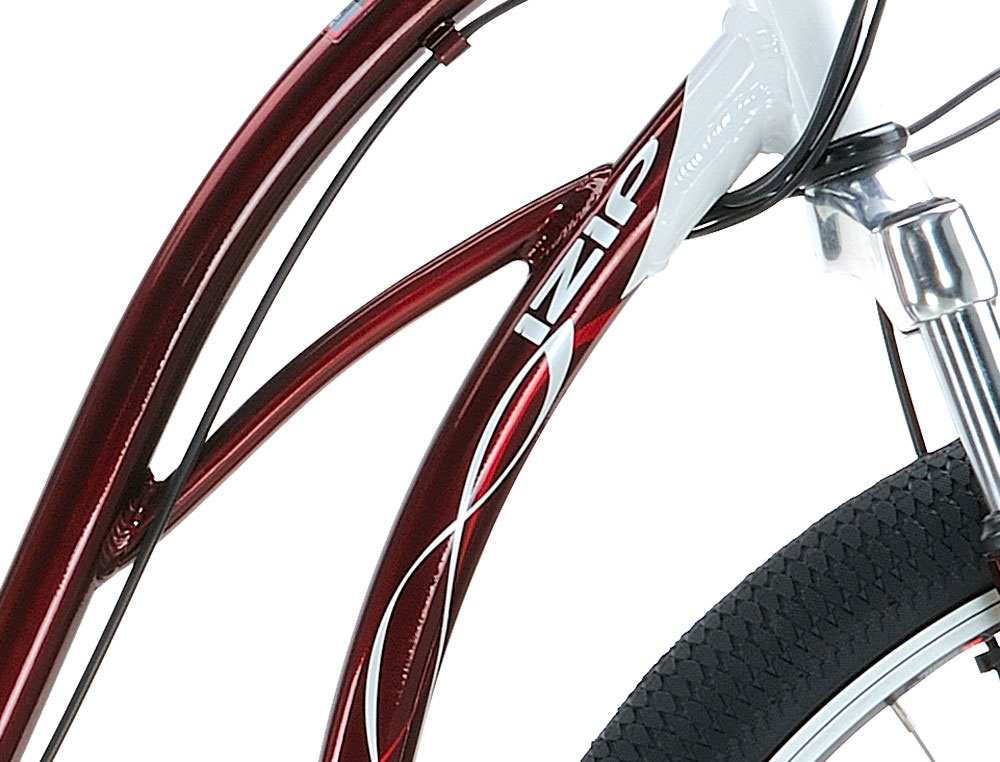

Exclusive Currie Aluminum Comfort Design, 6061 Aluminum. Fully Integrated Alloy Rear Carrier with Easy to Mount Locking Battery Pack System. |
| CRANKS AND PEDALS |
Alloy 44T Crankset, Metal Chainguard, Resin/Rubber Non-Slip Pedals |
| NET WEIGHT |
57lb / 26 kg |
| RIDER AGE & WEIGHT LIMIT |
13+ 240 lb |
| SIZES |
Cantilever Frame |
ELECTRIC FACTS
PAS/TAG
Twist and Go or Pedal Assist
- Allows users to select between two modes.Pedaling Alone: This option gives 50% of available power assist, conserving energy. Pedaling while Activating Throttle: This option allows user to go from 50% to full power assist or anywhere in between.
Mode
- PAS/TAG System
- The Advantage. Rider can select between two power assist modes.
- The Benefit. TAG allows you to power the bikewithout pedaling at all.
- PAS mode without throttle stretches range and economizes battery usage.
Electro- Drive®
- Powerful High Torque Brushless Hub Motor
- The Advantage. Powerful brushless hub motor system drives the rear wheel.
- The Benefit. Provides the power you need to climb hills or cut through a head wind.
